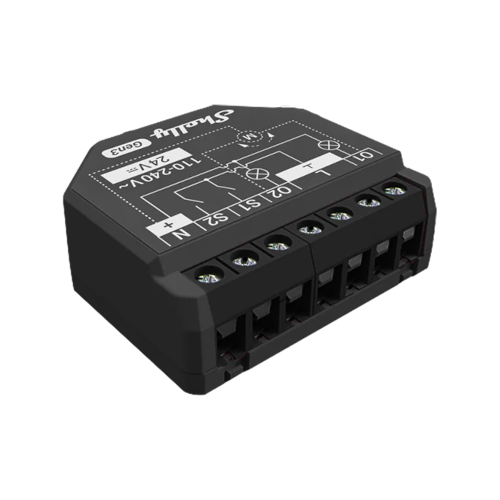

Shelly 2PM Gen3
£21.79
Shelly 2PM Gen3 is a compact two-channel relay with power measurement and cover control, able to drive roller shutters, blinds, awnings, gates and garage doors with position control, including Venetian blind tilt. It retrofits into standard wall boxes behind existing switches, with an embedded web interface for local control.
- Two channels, 10A each (16A total, 18A peak)
- Roller shutter mode with position control, incl. Venetian blinds
- Power measurement on AC loads plus embedded web interface
- Retrofits into standard wall boxes behind existing switches
Buy the Shelly 2PM Gen3 online in the UK from ShellyUK — genuine Shelly stock with fast UK delivery.
Shelly 2PM Gen3 is a small form factor 2-channel smart switch with power measurement and cover control, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device also has improved processor and increased memory compared to its predecessor. The device supports Venetian blinds.
Shelly 2PM Gen3 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.
It can be retrofitted into standard electrical wall boxes, behind light switches or other places with limited space.
Shelly 2PM Gen3 has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.
Two channels, 10A each (16A total, 18A peak)
Roller shutter mode with position control, incl. Venetian blinds
Power measurement on AC loads plus embedded web interface
Retrofits into standard wall boxes behind existing switches
Where you'd use it
Motorised blind position control
Drive a roller blind, awning or curtain motor with proper open/closed position tracking, so you can set it to a precise 40% open rather than just fully up or down.
Dual-circuit switching with metering
Control two independent circuits u2014 say hallway and landing lighting u2014 from one device, each with its own power measurement, instead of fitting two separate single-channel relays.
Retrofit into a double gang box
Fit it behind a two-gang light switch where a single relay wouldn't cover both switched circuits, using the embedded web interface to configure it without the cloud app if needed.
Specification
Connectivity
- HTTP/HTTPS webhooks
- Yes
- Wi-Fi Protocol
- 802.11 b/g/n
- Wi-Fi Radio frequency
- 2412 - 2472 MHz
- Wi-Fi Radio signal power
- 1mW
- WiFi range (depending on local construction) • up to
- 50 m outdoors • up to 30 m indoors
- Bluetooth
- Yes
- Bluetooth Protocol
- 4.2
- Bluetooth Range • up to
- 30m/100ft outdoors • up to 10m/33ft indoors
Protection & Safety
- Device temperature protection
- Yes
- Overload protection
- Yes
Physical & Build
- (H x W x D)
- 37 x 42 x 16 ±0.5 mm / 1.46 x 1.65 x 0.63 ±0.02 in
Environmental
- Operational temperature
- -20°C to + 40°C
Power & Electrical
- Power supply
- AC 110-230V ±10%, 50/60Hz
- Power supply
- DC 24V ±10%
- Maximum load per channel
- 10A
- Device total maximum load
- 16A (18A peak)
- Maximum switching voltage
- 240V AC / 30V DC
- Electrical consumption < 1.4W
- Channels
- 2
- Dry contacts
- No
- Roller shutter mode Yes, with position control – roller shutters, blinds, awnings, curtains, gates, shades, sliding door, pool covers, garage door, bi-directional
- AC motors
Smart Features
- Power measurement Yes (AC only)
- Custom scripts(mJs)
- Yes
