Dimmers & Switches. Dimming controllers for retrofitting smart brightness control onto existing lighting circuits, including trailing-edge (standard domestic dimmer-compatible) and 0/1-10V units for driving LED drivers and DALI-compatible fittings directly. Check your existing bulbs and drivers are dimmable before buying — LED dimming compatibility varies by bulb, and 0-10V/DALI units need a compatible driver on the load side, not a standard bulb. The Bypass accessory is a fix for flicker on low-wattage LED loads, not a standalone product.
Shelly Dimmer 2 is a compact Wi-Fi dimmer for halogen lights, dimmable LEDs and ferromagnetic transformers, fitting behind a standard wall switch without needing a neutral wire. Note that it does not support constant-voltage LED drivers, so check your driver type before fitting.
No neutral wire required for installation
Dims halogen, dimmable LED and ferromagnetic transformer loads
Compact 42 x 36 x 14mm, fits behind existing switches
Constant-voltage LED drivers are not supported — check compatibility first

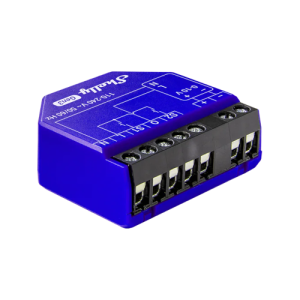

The Shelly Dimmer 0/1-10V PM Gen3 is a smart dimming controller for driving 0-10V and 1-10V compatible LED drivers from a phone, tablet, PC, or automation system. It's a current-sourcing controller that works standalone over Wi-Fi or through cloud services, with built-in power measurement and support for up to 13A of switching current.
Supports both 0-10V and 1-10V driver types
Current-sourcing controller with power measurement
Handles up to 13A switching current
Supports HTTP/HTTPS webhooks and custom mJS scripts

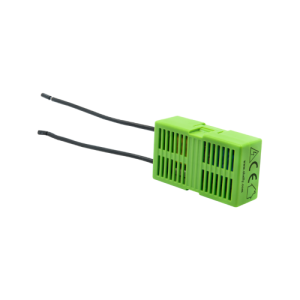

A bypass module used alongside the Shelly Dimmer Gen3+ in no-neutral lighting installations, helping the dimmer support low-wattage loads that a no-neutral wiring setup might otherwise struggle with. It's a passive accessory fitted as part of the dimmer installation rather than a standalone smart device.
Designed specifically for no-neutral installations
Used together with the Shelly Dimmer Gen3+
Helps enable dimming of low-wattage lighting loads
Fitted as a passive accessory during the dimmer's installation, not standalone.
Shelly DALI Dimmer Gen3 is a gateway that brings DALI-controlled lighting into the Shelly ecosystem, acting as a single-master DALI application controller compatible with LED control gear (Part 207). Its integrated bus power supply drives up to five non-powered DALI bus units without extra power modules, and adds KNXnet/IP support.
Integrated DALI bus power supply for up to 5 units
Single-master DALI controller for Part 207 LED control gear
Supports KNXnet/IP for KNX system integration
Night mode plus adjustable min/max brightness and transition duration

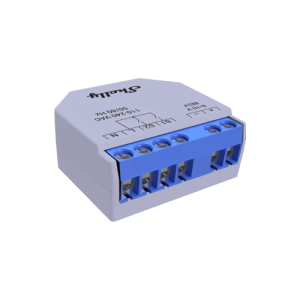

Shelly Plus 0-10V Dimmer controls 0-10V dimmable drivers remotely while remaining compatible with an existing physical switch. Beyond lighting, it can send 0-10V control signals to compatible motors and valves, and supports one or two-button dimming modes for conventional wall-mounted control.
Controls 0-10V drivers for lights, motors or valves
Sinking-type 0-10V output, max 10V DC control voltage
One or dual-button dimming modes with physical switches

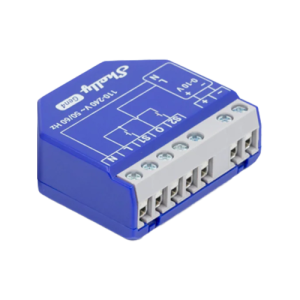

The Shelly Dimmer 0/1-10V PM Gen4 is a professional dimmer for lighting systems using 0-10V or 1-10V control drivers, fitting behind existing wall switches. Built on an ESP32-C6 processor with Wi-Fi, Zigbee, Bluetooth and Matter support, it adds real-time power measurement, one- or two-button switch operation, and KNXnet/IP integration for building automation.
Supports both 0-10V and 1-10V dimmable drivers
KNXnet/IP support for professional building automation
One- or two-button wall switch control with existing switches
The Shelly Dimmer Gen4 is a compact trailing-edge dimmer that fits behind existing switches and works with or without a neutral wire (a bypass is needed under 20W). It supports Wi-Fi, Bluetooth, Zigbee and Matter, handles up to 200W of dimmable LED, halogen or incandescent lighting, and includes automatic calibration for flicker-free dimming.
Multiprotocol: Wi-Fi, Bluetooth, Zigbee and Matter
Works without a neutral wire (bypass needed under 20W)
Automatic calibration for smooth, flicker-free dimming
Adjustable fade rate and transition time for tailored dimming

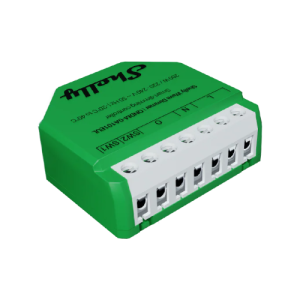

The Shelly Wave Dimmer is a Z-Wave dimmer that works with or without a neutral wire and handles up to 200W of dimmable lighting. Built on Z-Wave 800 series technology, it supports both standard Z-Wave mesh and Z-Wave Long Range (over 1km line of sight), acts as a mesh repeater, and reports voltage, current, power and energy.
Supports Z-Wave Long Range (over 1km line of sight)
Works with or without a neutral wire
Acts as a Z-Wave mesh repeater for other devices
Over-current, over-voltage and overheating protection built in
The Shelly Dimmer Gen3 is a single-channel trailing-edge dimmer that fits behind an existing switch and works with or without a neutral wire (a bypass is needed under 20W). Built on Shelly's 8MB ESP-Shelly-C3 chip, it supports scripting, KNXnet/IP and doubles as a Wi-Fi range extender and Bluetooth gateway.
Works without a neutral wire (bypass needed under 20W)
Supports KNXnet/IP for building automation integration
Doubles as Wi-Fi range extender and Bluetooth gateway
