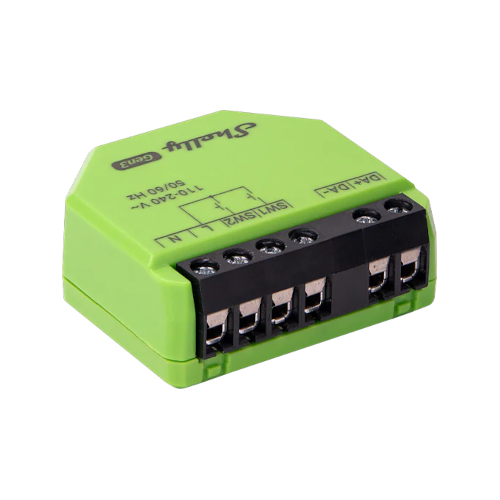

Shelly DALI Dimmer Gen3
£43.79
Shelly DALI Dimmer Gen3 is a gateway that brings DALI-controlled lighting into the Shelly ecosystem, acting as a single-master DALI application controller compatible with LED control gear (Part 207). Its integrated bus power supply drives up to five non-powered DALI bus units without extra power modules, and adds KNXnet/IP support.
- Integrated DALI bus power supply for up to 5 units
- Single-master DALI controller for Part 207 LED control gear
- Supports KNXnet/IP for KNX system integration
- Night mode plus adjustable min/max brightness and transition duration
Buy the Shelly DALI Dimmer Gen3 online in the UK from ShellyUK — genuine Shelly stock with fast UK delivery.
Transform your lighting experience with the Shelly DALI Dimmer Gen3, a sophisticated gateway device that seamlessly integrates DALI lights into the Shelly ecosystem. This innovative solution offers precise brightness control and a range of advanced features, making it ideal for both home and office environments. With its single-master application controller, the Shelly DALI Dimmer Gen3 supports LED control gear (Part 207) and can manage up to five non-powered bus units with its integrated bus power supply, eliminating the need for additional power modules.
Experience the convenience of remote control and monitoring through the Shelly Smart Control app or any internet-connected device. The device’s embedded web interface allows for easy adjustment of settings and control of connected DALI lights. Enjoy flexible input control with switch or button modes, and customise your lighting experience with features like night mode, min/max brightness, and transition duration.
The Shelly DALI Dimmer Gen3 not only enhances your lighting system but also offers a cost-effective and flexible solution for expanding your smart home or office setup. With its robust features and easy integration with external sensors and input controls, it provides a predictable and repeatable brightness control experience, making it an essential addition to any smart ecosystem.
Key Features:
- Single-master DALI application controller for precise LED control
- Integrated bus power supply for up to five non-powered bus units
- Remote control and monitoring via Shelly Smart Control app
- Embedded web interface for easy settings adjustment
- Flexible input control with switch or button modes
- Night mode, min/max brightness, and transition duration settings
- Compatibility with Shelly Plus Add-on for sensor interface
- Support for scripting, webhooks, MQTT, and local actions
- KNXnet/IP communication for seamless integration into KNX systems
- No hub required for local or remote control
- Wi-Fi and Bluetooth connectivity with BLE gateway and Wi-Fi range extender
Integrated DALI bus power supply for up to 5 units
Single-master DALI controller for Part 207 LED control gear
Supports KNXnet/IP for KNX system integration
Night mode plus adjustable min/max brightness and transition duration
Where you'd use it

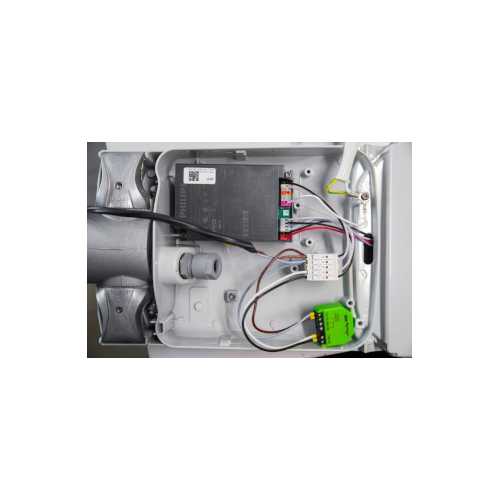

Bringing DALI lighting into the Shelly app
Control an existing DALI-wired office or home lighting circuit from the Shelly Smart Control app, giving DALI fittings the same scheduling and scene tools as your other Shelly devices.
Powering the DALI bus without extra hardware
Use the integrated bus power supply to run up to five non-powered DALI control units directly, skipping the cost and space of a separate DALI power supply module.
KNX and DALI in one system
Bridge a KNX-based building control system to DALI lighting via the KNXnet/IP support, useful where the two standards need to work together rather than as separate silos.
Specification
Connectivity
- WiFi protocol
- 802.11 b/g/n
- WiFi RF band
- 2401-2495 MHz
- WiFi max. RF power < 20dBm
- Wi-Fi Range (depending on local construction) • up to
- 50m/160ft outdoors • up to 30m/100ft indoors
- Bluetooth protocol
- 4.2
- Bluetooth RF band
- 2400-2483.5 MHz
- Bluetooth max. RF power < 4dBm
- Bluetooth Range (depending on local construction) • up to
- 30m/100ft outdoors • up to 10m/33ft indoors
Physical & Build
- (H x W x L)
- 42x37x17 mm / 1.65x1.46x0.66 inch
Environmental
- Humidity
- 30% to 70% RH
Power & Electrical
- Power Supply
- 110-240V AC ±10% 50/60Hz
- Power consumption < 2W
- Bus power supply Guaranteed
- 10mA (up to 5 DALI control gear units), Short circuit current < 35mA
- Bus voltage
- 16V nominal
Other
- Works without neutral
- No
- Ambient working temperature
- -20°C to 40°C / -5°F to 105°F
- Internal-temperature sensor
- Yes
