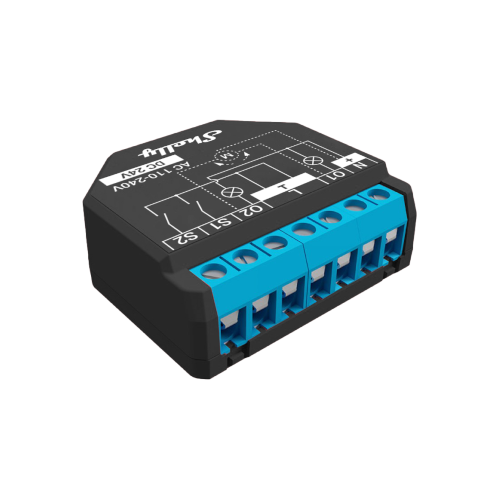

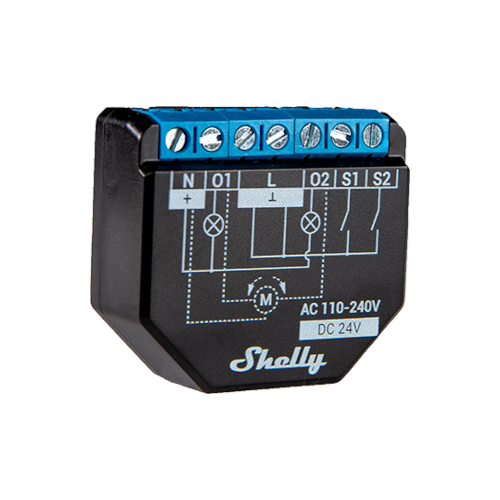

Shelly Plus 2PM
£20.79
A two-channel WiFi relay with an independent power meter per channel, rated 10A per channel and 16A total, 18A peak. Includes roller shutter mode with position control for blinds, curtains, gates and other bi-directional AC motors, plus overpower protection, Bluetooth setup and mJS scripting.
- Roller shutter mode with position control for AC motors
- Independent power metering per channel
- 10A per channel, 16A total, 18A peak
- Overpower protection helps limit excess energy consumption automatically.
Buy the Shelly Plus 2PM online in the UK from ShellyUK — genuine Shelly stock with fast UK delivery.
The Shelly Plus 2PM is a single-phase, 2-channel smart relay supporting up to 10A per channel and 16A total current (18A peak). It is equipped with an independent power meter for each channel and an overpower protection function to limit your energy consumption. Cover (roller) control allows for the control and monitoring of roller shutters, blinds, curtains, gates, and other bi-directional AC motors.
Shelly Plus-Series devices pack an extremely fast processor, quicker connectivity, improved integration, and enhanced safety! You can now add devices easily via Bluetooth connection, using the Shelly Cloud App. Shelly Plus line supports TLS encryption and has an improved shell for standardized support for external sensor addons.
Roller shutter mode with position control for AC motors
Independent power metering per channel
10A per channel, 16A total, 18A peak
Overpower protection helps limit excess energy consumption automatically.
Where you'd use it
Motorised Blind and Curtain Control
Use the Plus 2PM's roller shutter mode to drive motorised blinds or curtains with position control, so you can set them to a specific percentage rather than just open or shut.
Bi-Directional Garage Door Automation
Wire it to a garage door or gate motor to get remote open/close control with position feedback, using the same cover-control mode built for bi-directional AC motors.
Two Independent Sockets with Overpower Protection
Run two separate kitchen worktop appliances from the two channels, each individually metered and protected against overload so a fault on one doesn't take out the other.
Specification
Connectivity
- HTTP/HTTPS webhooks
- Yes
- Wi-Fi Protocol
- 802.11 b/g/n
- Wi-Fi Radio frequency
- 2412 - 2484 MHz
- Wi-Fi Radio signal power
- 1mW
- Operational range (depending on local construction) • up to
- 50 m outdoors • up to 30 m indoors
- Bluetooth
- Yes
Protection & Safety
- Device temperature protection
- Yes
- Overload protection
- Yes
Physical & Build
- (H x W x L)
- 42 x 38 x 16 mm
Environmental
- Operational temperature
- -20°C to + 40°C
Power & Electrical
- Power supply
- AC 110-230V ±10%, 50/60Hz
- Power supply
- DC 24V ±10%
- Maximum load per channel
- 10A
- Device total maximum load
- 16A (18A peak)
- Maximum switching voltage
- 240V AC / 30V DC
- Electrical consumption < 1.4W
- Channels
- 2
- Dry contacts
- No
- Roller shutter mode Yes, with position control – roller shutters, blinds, awnings, curtains, gates, shades, sliding door, pool covers, garage door, bi-directional
- AC motors
Smart Features
- Power measurement Yes (AC only)
- Custom scripts(mJs)
- Yes
