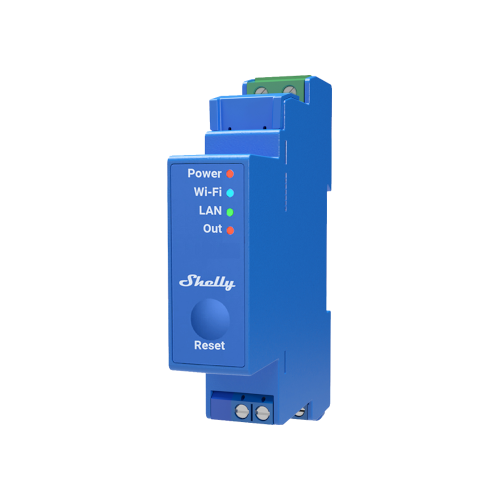

Shelly Pro 1
£59.49
A DIN rail mountable single-channel dry contact relay for home and commercial automation, with Wi-Fi, LAN and Bluetooth connectivity. Designed to fit inside a breaker box so no extra cabling is needed, it handles up to 16A and includes device temperature protection.
- DIN rail mounted for installation inside the breaker box
- Wi-Fi, Ethernet and Bluetooth connectivity in one unit
- Dry contact output rated up to 16A
- Supports HTTP/HTTPS webhooks and custom mJS scripting
Buy the Shelly Pro 1 online in the UK from ShellyUK — genuine Shelly stock with fast UK delivery.
Professional DIN rail mountable single channel dry contact relay with Wi-Fi, LAN, and Bluetooth connection. Suitable for home and commercial facility automation with remote control. Enhanced safety features and compatible with the many common home automation platforms.
Enhanced with device temperature protection, the Shelly Pro series is designed to be installed inside the breaker box (DIN rail). Allowing complete smart automation with no additional cables or wiring, the Shelly Pro series is perfect for homes, offices, stores, businesses, and manufacturing facilities, as well as new buildings.
DIN rail mounted for installation inside the breaker box
Wi-Fi, Ethernet and Bluetooth connectivity in one unit
Dry contact output rated up to 16A
Supports HTTP/HTTPS webhooks and custom mJS scripting
Where you'd use it
Consumer unit boiler switching
Install on DIN rail inside the breaker box to switch a boiler or heating circuit via the dry contacts without running any extra cabling to the panel.
Ethernet-reliable relay control
Use the LAN connection for a relay controlling something critical, like a gate or a pump, where a WiFi dropout during a control command isn't acceptable.
Webhook-driven automation
Trigger the relay via an HTTP webhook from a separate monitoring script or third-party system, for example switching on a pump when an external sensor reports a condition.
Specification
Connectivity
- HTTP/HTTPS webhooks
- Yes
- Wi-Fi Protocol
- 802.11 b/g/n
- Wi-Fi Radio frequency
- 2412 - 2484 MHz
- Wi-Fi Radio signal power
- 1mW
- Operational range (depending on local construction) • up to
- 50 m outdoors • up to 30 m indoors
- Bluetooth
- Yes
Protection & Safety
- Device temperature protection
- Yes
- Overload protection
- No
Physical & Build
- (H x W x L)
- 90 x 19 x 69 mm
Environmental
- Operational temperature
- -20°C to +40 °C
Power & Electrical
- Power supply
- AC 110-230V ±10%, 50/60Hz
- Power supply
- DC No
- Maximum load
- 16A
- Electrical consumption < 3W
- Dry contacts
- Yes
- Roller shutter mode
- No
- Channels
- 1
Smart Features
- Power measurement
- No
- Custom scripts(mJs)
- Yes
Other
- Ethernet
- Yes
