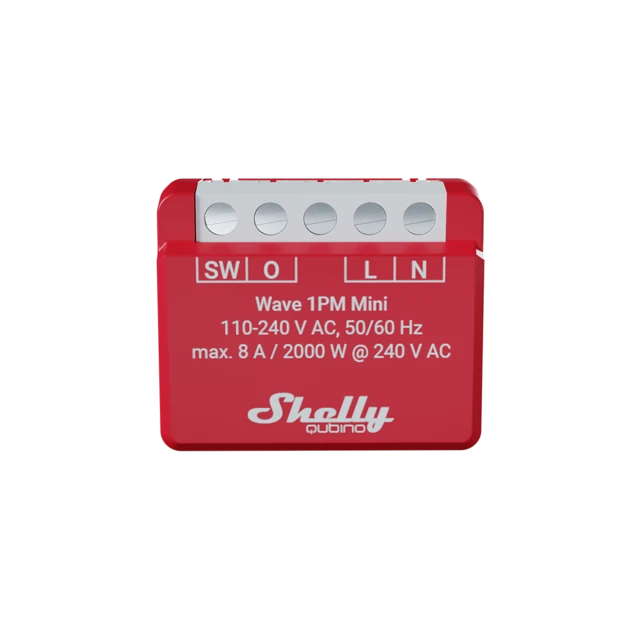

Shelly Qubino Wave 1PM Mini
£36.29
The Shelly Qubino Wave 1PM Mini is billed as the smallest Z-Wave smart switch available, small enough to retrofit behind existing switches and sockets. It automates lights, garage doors, or irrigation with built-in power metering, runs on the latest Z-Wave 800 series chipset, and pairs automatically via SmartStart.
- Smallest Z-Wave smart switch, fits behind switches
- Supports up to 8A at 240V AC
- Z-Wave 800 series with Security 2 Authenticated
- Includes built-in power metering for monitoring connected loads
Buy the Shelly Qubino Wave 1PM Mini online in the UK from ShellyUK — genuine Shelly stock with fast UK delivery.
The smallest Z-Wave smart switch in the world for smart control. Automate your lights, garage door, irrigation system, or other small electrical appliances in less than 10 minutes and control them from anywhere. The Wave 1PM Mini is small enough to fit behind most switches and sockets and is designed to be retrofitted.
- Supports up to 8A at 240V AC
- Power metering
- Extremely low power consumption: < 0.3W
- Z-Wave frequency band: 868.4 MHz (CEPT countries)
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Supports over-the-air firmware updates
- Fast and simple installation in most electrical boxes and switches
- Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
Smallest Z-Wave smart switch, fits behind switches
Supports up to 8A at 240V AC
Z-Wave 800 series with Security 2 Authenticated
Includes built-in power metering for monitoring connected loads
Where you'd use it

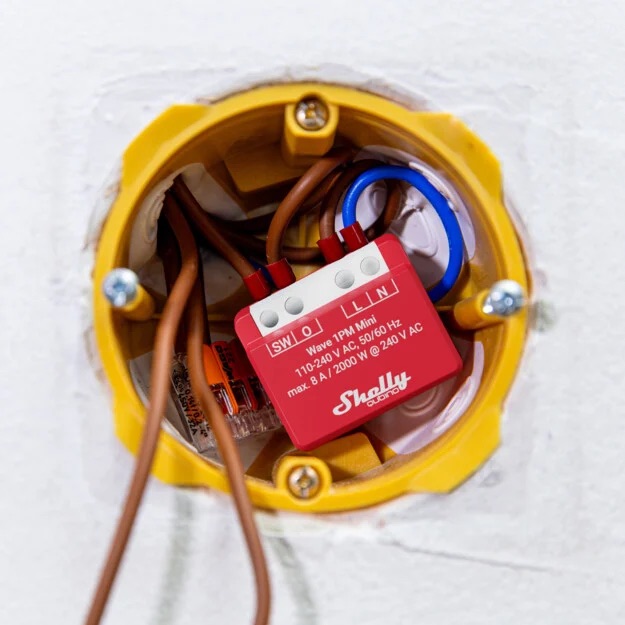

Behind-the-Switch Retrofit
Fit the Wave 1PM Mini inside an existing switch back box so a Z-Wave hub gains control of the light without any visible new hardware.
Garage Door Automation
Wire it to a garage door opener so the door can be triggered from a Z-Wave scene or automation rather than a wall button alone.
Power-Aware Irrigation Control
Drive a small irrigation pump and use the built-in power metering to confirm it actually switched on rather than just assuming the command worked.
Specification
Connectivity
- CPU Z-Wave™ S800
- Z-Wave™ repeater
- Yes
- Z-Wave™ frequency bands
- 868,4 MHz;
- Maximum radio frequency power transmitted in frequency band(s) < 25mW
- Operational range (depending on local construction) Up to
- 40m indoors (131 ft.)
Protection & Safety
- Overheating protection
- Yes
- Overload protection
- Yes
Physical & Build
- (H x W x L)
- 29 x 35 x 16 ±0.5 mm 1.11 x 1.35 x 0.63 ±0.02 in
Environmental
- Humidity
- 30% to 70% RH
Power & Electrical
- Power supply
- AC 110-240V 50/60Hz
- Max switching voltage
- AC 240V
- Max switching voltage
- DC N/A
- Power consumption < 0.3W
- Dry contacts
- No
Smart Features
- Power measurement
- Yes
Other
- Max switching current
- AC 8A
- Max switching current
- DC N/A
- Ambient temperature
- -20°C to 40°C / -5°F to 105°F
