80A CT for Shelly EM Gen3
£14.79

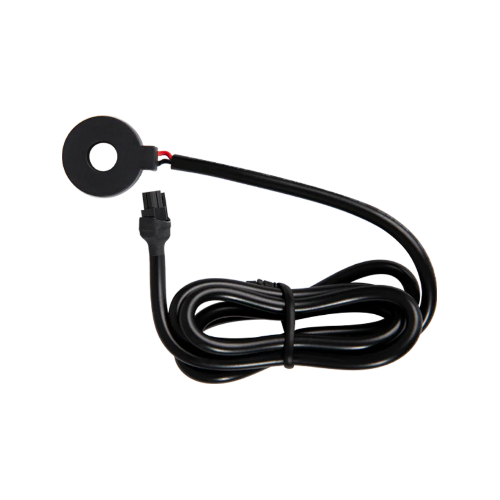

This 80A solid-core current transformer is an accessory for the Shelly EM Gen3, extending circuit monitoring up to 80A. It has a 7mm internal core diameter and a 60cm cable, and is only compatible with the Shelly EM Gen3, not other Shelly energy meters.
- Rated for circuits up to 80A
- 1% measurement accuracy, solid ferrite core
- Only compatible with the Shelly EM Gen3
- 7mm internal core diameter with a 60cm cable
Buy the 80A CT for Shelly EM Gen3 online in the UK from ShellyUK — genuine Shelly stock with fast UK delivery.
The 80A solid core current transformer can be used with the Shelly EM Gen3 to monitor circuits rated up to 80A. The internal diameter of the core is 7mm, and the cable length is 60cm.
*Only compatible with the Shelly EM Gen3.
Rated for circuits up to 80A
1% measurement accuracy, solid ferrite core
Only compatible with the Shelly EM Gen3
7mm internal core diameter with a 60cm cable
Where you'd use it
Monitoring a higher-current circuit
Fit it to a heavier circuit u2014 an electric shower, cooker or EV charger u2014 that exceeds the range of a standard CT, giving the EM Gen3 accurate readings up to 80A.
Adding a second monitored channel
Use it as the second clamp on an EM Gen3 install where the first channel is already tracking a different circuit, so both can be monitored independently at their correct current ratings.
Correctly rated replacement clamp
Swap out an undersized or damaged CT for one rated to the actual circuit current, keeping power readings accurate rather than working at the edge of a lower-rated clamp's range.
Specification
Physical & Build
- Compatible devices • Shelly EM Gen3
Other
- Accuracy
- 1%
- Core Solid ferrite core
- Electrical Strength
- 3000VAC 1mA60s
- Internal diameter
- 7mm
- Load Resistance
- 20Ω
- Rated Primary Current
- 80A
