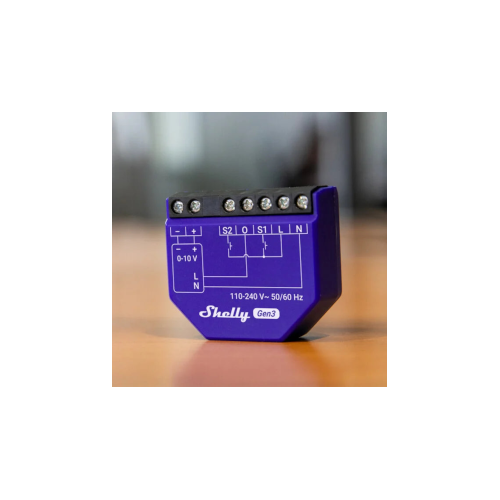

Shelly Dimmer 0/1-10V PM Gen3
£27.29
The Shelly Dimmer 0/1-10V PM Gen3 is a smart dimming controller for driving 0-10V and 1-10V compatible LED drivers from a phone, tablet, PC, or automation system. It's a current-sourcing controller that works standalone over Wi-Fi or through cloud services, with built-in power measurement and support for up to 13A of switching current.
- Supports both 0-10V and 1-10V driver types
- Current-sourcing controller with power measurement
- Handles up to 13A switching current
- Supports HTTP/HTTPS webhooks and custom mJS scripts
Buy the Shelly Dimmer 0/1-10V PM Gen3 online in the UK from ShellyUK — genuine Shelly stock with fast UK delivery.
Shelly Dimmer 0/1-10V PM Gen3 is a smart dimming controller which allows remote control dimming drivers through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device is a current sourcing controller and provides support for 0-10V and 1-10V types of drivers.
Supports both 0-10V and 1-10V driver types
Current-sourcing controller with power measurement
Handles up to 13A switching current
Supports HTTP/HTTPS webhooks and custom mJS scripts
Where you'd use it
Compact Retrofit Dimming
Fit the small form factor behind a standard dimmer plate to add remote and app control to a room without needing a bigger back box.
Local-Only Mood Lighting
Run it standalone on the local WiFi network for bedroom lighting where you'd rather not depend on a cloud service to dim the lights.
Bluetooth Commissioning
Pair and configure it over Bluetooth during install, before it's connected to the home WiFi network, to speed up setup on site.
Specification
Connectivity
- HTTP/HTTPS webhooks
- Yes
- Wi-Fi Protocol
- 802.11 b/g/n
- Wi-Fi Radio frequency
- 2412 - 2472 MHz
- Wi-Fi Radio signal power
- 1mW
- WiFi range (depending on local construction) • up to
- 50 m outdoors • up to 30 m indoors
- Bluetooth
- Yes
- Bluetooth Protocol
- 4.2
- Bluetooth Range • up to
- 30m/100ft outdoors • up to 10m/33ft indoors
Protection & Safety
- Device temperature protection
- Yes
Physical & Build
- (H x W x D)
- 38.5 x 43.5 x 17 mm / 1.52 x 1.71 x 0.67 in
Environmental
- Operational temperature
- -20°C to + 40°C
Power & Electrical
- Power supply
- AC 110-230V ±10%, 50/60Hz
- Maximum switching voltage
- 240V~
- Electrical consumption < 1.5W
- 0-10V/1-10V voltage control type Current sourcing
Smart Features
- Power measurement
- Yes
- Custom scripts(mJs)
- Yes
Other
- Maximum switching current
- 13A
- Maximum control current
- 35mA
