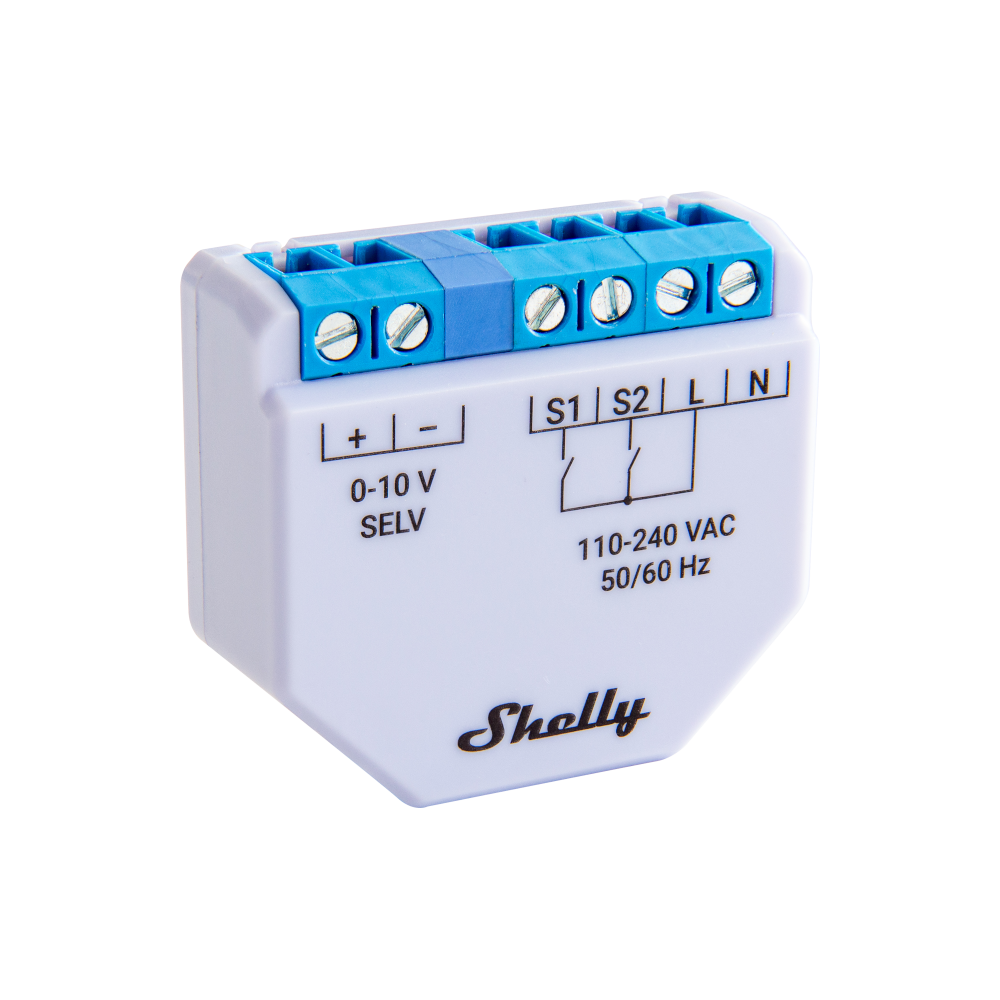

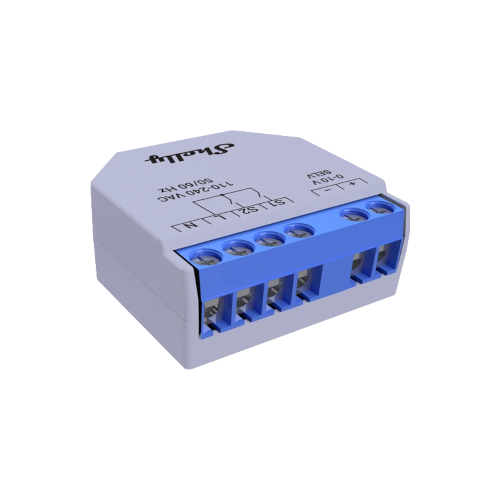

Shelly Plus 0-10V Dimmer
£18.79
Shelly Plus 0-10V Dimmer controls 0-10V dimmable drivers remotely while remaining compatible with an existing physical switch. Beyond lighting, it can send 0-10V control signals to compatible motors and valves, and supports one or two-button dimming modes for conventional wall-mounted control.
- Controls 0-10V drivers for lights, motors or valves
- Sinking-type 0-10V output, max 10V DC control voltage
- One or dual-button dimming modes with physical switches
- Built-in Wi-Fi range extender and BLE gateway
Buy the Shelly Plus 0-10V Dimmer online in the UK from ShellyUK — genuine Shelly stock with fast UK delivery.
Designed to manage 0-10V dimming drivers, Shelly Plus 0-10V Dimmer offers precise dimming with remote control. It may be retrofit and can be used with any regular switch you have at home.
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
- Supports signal control for multiple types of drivers (lights, motors, valves, etc; depending on the driver)
- One/dual button dimming mode (use with physical switches)
- Wi-Fi Range Extender & BLE Gateway
- Extremely fast processor for immediate reaction - ESP32
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
Controls 0-10V drivers for lights, motors or valves
Sinking-type 0-10V output, max 10V DC control voltage
One or dual-button dimming modes with physical switches
Built-in Wi-Fi range extender and BLE gateway
Where you'd use it
0-10V LED driver dimming

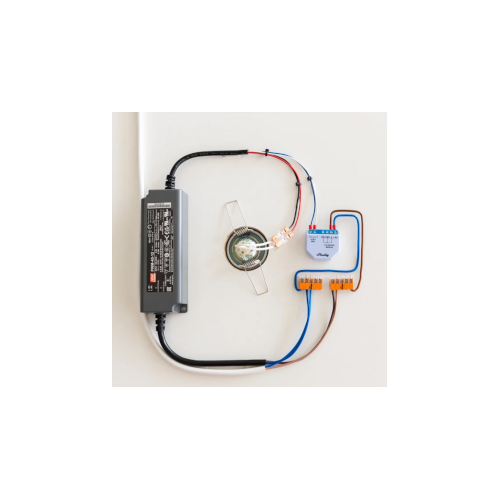

Connect it to an existing 0-10V dimmable LED driver to bring app and voice control to a fitting that was previously only adjustable at a wall-mounted dimmer.
Retrofit onto existing switches
Wire it in behind a standard physical dimmer switch so the existing wall control keeps working locally while also gaining remote and scheduled control.
Driving motors and valves via analogue signal
Use the 0-10V output for equipment beyond lighting, such as a compatible motor or valve actuator that accepts the same control signal, depending on what the driver supports.
Specification
Connectivity
- Webhooks (URL actions)
- 20 with 5 URLs per hook
- MQTT
- Yes
- Wi-Fi protocol
- 802.11 b/g/n
- Wi-Fi Range (depending on local construction) • up to
- 50m outdoors • up to 30m indoors
- WiFi max. RF power < 20dBm
- WiFi RF band
- 2401-2495 МHz
- Bluetooth protocol
- 4.2
- Bluetooth range (depending on local construction) • up to
- 30m outdoors • up to 10m indoors
- Bluetooth max. RF power < 4dBm
- Bluetooth RF band
- 2400-2483.5 MHz
Physical & Build
- Conductor cross section
- 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
- Conductor stripped length
- 5 to 6 mm / 0.20 to 0.24 in
- (H x W x L)

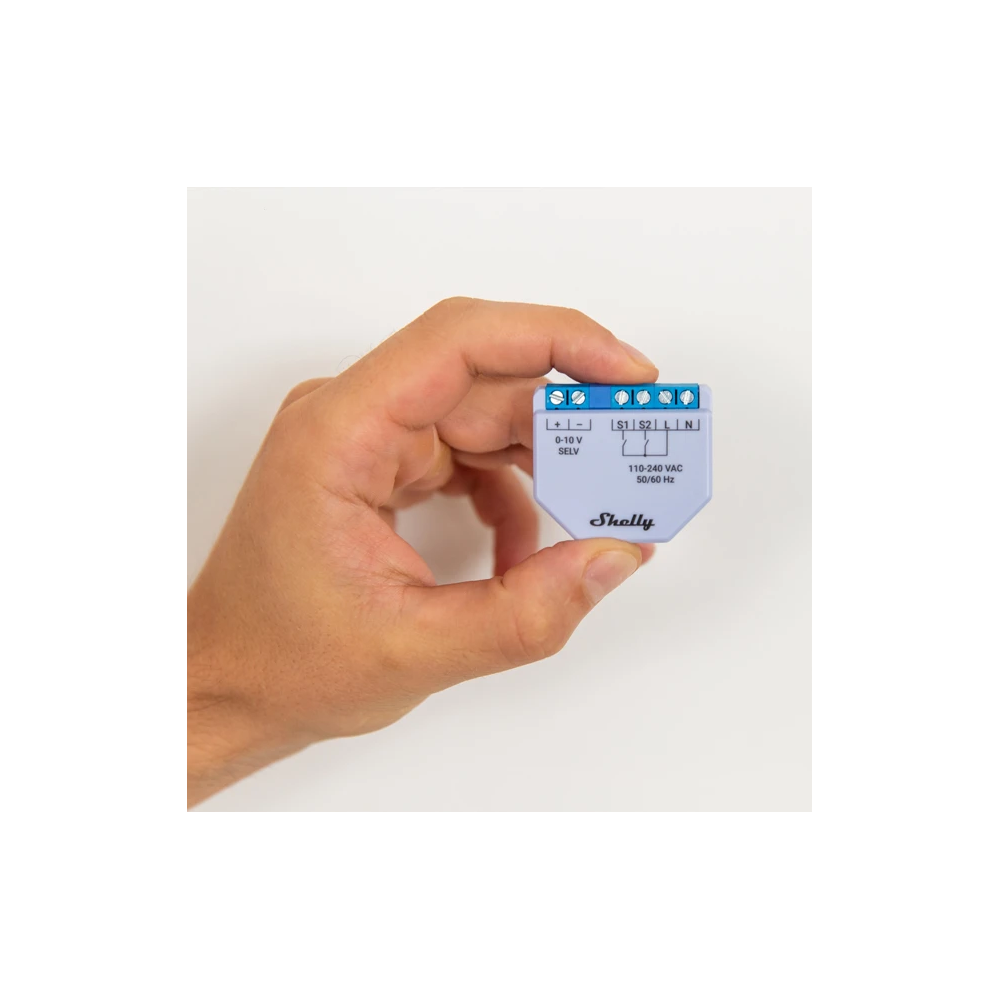

- 42 x 37 x 17 ±0.5 mm / 1.65 x 1.46 x 0.66 ±0.02 in
Environmental
- Humidity
- 30% to 70% RH
Power & Electrical
- Power supply
- 110-240V AC ±10%
- 0-10V Voltage control type Sinking
- Power consumption < 1.2W
- Max control voltage
- 10V DC
Other
- Max control current
- 0.35 W
- Screw terminals max torque
- 0.4Nm / 3.5lbin
- Ambient temperature
- -20 to 40 °C / -5 to 105 °F
- Schedules
- 20
- Scripting
- Yes
