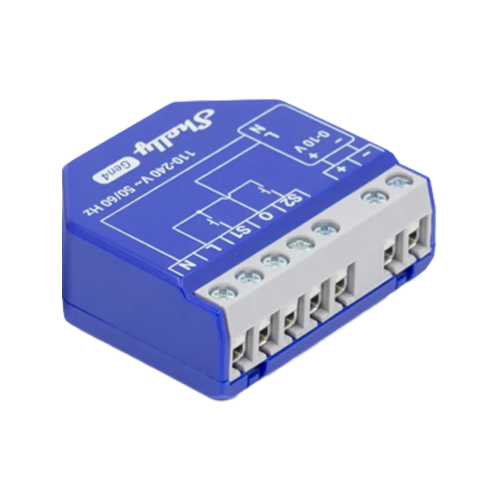

Shelly Dimmer 0/1-10V PM Gen4
£30.29
The Shelly Dimmer 0/1-10V PM Gen4 is a professional dimmer for lighting systems using 0-10V or 1-10V control drivers, fitting behind existing wall switches. Built on an ESP32-C6 processor with Wi-Fi, Zigbee, Bluetooth and Matter support, it adds real-time power measurement, one- or two-button switch operation, and KNXnet/IP integration for building automation.
- Supports both 0-10V and 1-10V dimmable drivers
- KNXnet/IP support for professional building automation
- One- or two-button wall switch control with existing switches
- Powered by the latest Shelly ESP32-C6 processor
Buy the Shelly Dimmer 0/1-10V PM Gen4 online in the UK from ShellyUK — genuine Shelly stock with fast UK delivery.
The Shelly Dimmer 0/1–10V PM Gen4 is a professional smart dimming controller designed for lighting systems that use 0–10V and 1–10V control drivers. Installed discreetly behind existing wall switches, it brings intelligent dimming, energy monitoring, and advanced automation to compatible lighting installations without changing the look of your space. Featuring Wi-Fi, Zigbee, Bluetooth, and Matter support out of the box, it integrates effortlessly into virtually any smart home or building automation system while giving you complete control through the Shelly Smart Control app, voice assistants, or your preferred platform.
Powered by the latest Shelly ESP32-C6 processor, the Dimmer 0/1–10V PM Gen4 combines high performance with exceptional flexibility. It supports one- or two-button wall switch operation, allowing smooth brightness adjustment using your existing switches. Built-in power measurement provides real-time voltage, current, and energy consumption data, while advanced features such as scheduling, scripting, webhooks, KNXnet/IP support, and local automations make it equally suited to residential, commercial, and professional lighting applications. As an added benefit, it also functions as a Wi-Fi and Zigbee range extender and Bluetooth gateway, helping strengthen your smart home network.
- Supports both 0–10V and 1–10V dimmable drivers
- Multi-protocol connectivity: Wi-Fi, Zigbee, Bluetooth, and Matter
- Built-in power measurement for voltage, current, and energy monitoring
- One- or two-button control using existing wall switches
- Adjustable brightness limits, fade rate, and transition speed
- Built-in Wi-Fi & Zigbee range extender and BLE gateway
- Advanced scheduling, scripting, local actions, and webhooks
- KNXnet/IP support for professional building automation
Whether you're upgrading an existing lighting installation, creating dynamic lighting scenes in a restaurant or hotel, or integrating commercial LED drivers into a smart building, the Shelly Dimmer 0/1–10V PM Gen4 delivers precise, energy-efficient lighting control with the flexibility to grow alongside your automation system.
Supports both 0-10V and 1-10V dimmable drivers
KNXnet/IP support for professional building automation
One- or two-button wall switch control with existing switches
Powered by the latest Shelly ESP32-C6 processor
Where you'd use it
Commercial 0-10V Driver Retrofit
Fit it behind existing wall switches to bring smart dimming and monitoring to 0-10V or 1-10V LED drivers already installed in a shop or office fit-out.
Restaurant Scene Lighting
Create different lighting scenes for lunch service versus evening dining, switching automatically on a schedule via the built-in scripting.
KNX Building Integration
Bring a 0-10V dimmed circuit into a KNXnet/IP building management system alongside the device's own app and voice control options.
Specification
Connectivity
- HTTP/HTTPS webhooks
- Yes
- WiFi Protocol
- 802.11 b/g/n/ax
- Wi-Fi Radio frequency
- 2401 - 2483 MHz
- WiFi range (depending on local construction) • up to
- 50 m outdoors • up to 30 m indoors
- Bluetooth Protocol
- 5.0
- Bluetooth Range • up to
- 30m/100ft outdoors • up to 10m/33ft indoors
- Zigbee Protocol
- 802.15.4
- Zigbee Repeater
- Yes
- Zigbee RF Bands
- 2405 - 2480 MHz
- Zigbee Range (depending on local construction) • up to
- 300m/984ft outdoors • up to 100m/328ft indoors
Protection & Safety
- Device temperature protection
- Yes
Physical & Build
- (H x W x D)
- 38.5 x 43.5 x 17 mm / 1.52 x 1.71 x 0.67 in
Environmental
- Operational temperature
- -20°C to + 40°C
Power & Electrical
- Power supply
- AC 110-230V ±10%, 50/60Hz
- Maximum switching voltage
- 240V~
- Electrical consumption < 1.5W
- 0-10V/1-10V voltage control type Current sourcing / Current syncing
Smart Features
- Power measurement
- Yes
- Custom scripts(mJs)
- Yes
Other
- Maximum switching current
- 13A
- Maximum control current
- 35mA
