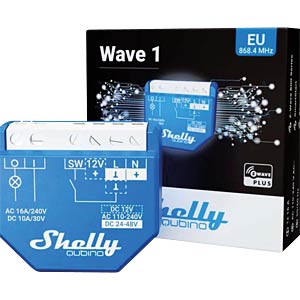

Shelly Qubino Wave 1
£37.29
A Z-Wave relay with a voltage-free dry contact output rated up to 16A, for controlling locks, gates, garage doors, irrigation, LED strips and sockets from anywhere. Built on the latest Z-Wave 800 series, it draws just 0.3W and uses Security 2 authentication, requiring a certified Z-Wave gateway.
- Dry contact output handles loads up to 16A
- Latest Z-Wave 800 series, only 0.3W power draw
- Security 2 (S2) authenticated for strongest available encryption
- Automatic SmartStart setup for quick, easy device pairing
Buy the Shelly Qubino Wave 1 online in the UK from ShellyUK — genuine Shelly stock with fast UK delivery.
Control a wide range of devices and office equipment, such as electrical locks, gates, garage doors, irrigation systems, LED strips, lights, and sockets, from anywhere. The output contact is voltage-free (dry contact), allowing you to connect various power supply loads of up to 16A to the device.
- Dry contacts
- Extremely low power consumption: 0.3W
- Latest technology: Z-Wave 800 Series
- Z-Wave frequency band: 868.4 MHz (CEPT countries)
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Supports over-the-air firmware updates (OTA)
- Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
Dry contact output handles loads up to 16A
Latest Z-Wave 800 series, only 0.3W power draw
Security 2 (S2) authenticated for strongest available encryption
Automatic SmartStart setup for quick, easy device pairing
Where you'd use it
Garage door and gate automation
Wire the voltage-free dry contact into an existing gate or garage door motor's control input to add Z-Wave open/close automation without replacing the motor itself.
Irrigation scheduling
Connect to an irrigation system's control circuit to run watering schedules and remote on/off from a Z-Wave hub.
Electric lock scenes
Use the dry contact output to trigger an electric door lock as part of a wider Z-Wave arrival or departure scene.
Specification
Connectivity
- CPU Z-Wave™ S800
- Z-Wave™ repeater
- Yes
- Z-Wave™ frequency bands
- 868,4 MHz; 865,2 MHz; 869,0 MHz; 921,4 MHz; 908,4 MHz; 916 MHz; 919,8 MHz; 922,5 MHz; 919,7-921,7-923,7 MHz; 868,1 MHz; 920,9 MHz
- Maximum radio frequency power transmitted in frequency band(s) < 25mW
- Operational range (depending on local construction) Up to
- 40m indoors (131 ft.)
Protection & Safety
- Overheating protection
- Yes
- Overload protection
- No
Physical & Build
- (H x W x L)
- 42 x 37 x 16 ±0.5 mm
Environmental
- Humidity
- 30% to 70% RH
Power & Electrical
- Power supply
- AC 110-240V 50/60Hz
- Power supply
- DC • 24-48V • 12V ±10%
- Max switching voltage
- AC 240V
- Max switching voltage
- DC 30V
- Power consumption < 0.3W
- Dry contacts
- Yes
Smart Features
- Power measurement
- No
Other
- Max switching current
- AC 16A
- Max switching current
- DC 10A
- Ambient temperature
- -20°C to 40°C / -5°F to 105°F
