Shelly Qubino Wave Shutter
£41.29
The Shelly Qubino Wave Shutter is a Z-Wave controller for automating bi-directional AC motors such as roller shutters, blinds, awnings, and pool covers, including tilt control of Venetian blind slats. It works with push-button or toggle switches, includes power metering, and runs on the Z-Wave 800 series chipset with SmartStart pairing.
- Tilt control for Venetian blind slats
- Supports push-button and toggle switches
- Up to 10A switching current per channel
- Built-in power metering monitors motor consumption
Buy the Shelly Qubino Wave Shutter online in the UK from ShellyUK — genuine Shelly stock with fast UK delivery.
Automate and remotely control the position of roller shutters, blinds, windows, awnings, pool covers, and other devices powered by bi-directional AC motors.
- Control the tilt position (angle) of Venetian blind slats
- Supports push-buttons/momentary switches, and toggle switches
- Power metering
- Extremely low power consumption: 0.3W
- Latest technology: Z-Wave 800 Series
- Z-Wave frequency band: 868.4 MHz (CEPT countries)
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Supports over-the-air firmware updates (OTA)
- Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
Tilt control for Venetian blind slats
Supports push-button and toggle switches
Up to 10A switching current per channel
Built-in power metering monitors motor consumption
Where you'd use it
Venetian Blind Tilt Control
Adjust the slat angle through the day to cut glare in the afternoon while still letting daylight in, rather than only opening or closing the blind fully.

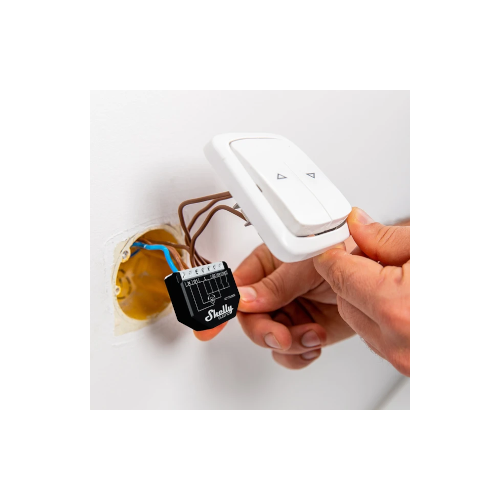

Existing Toggle Switch Retrofit
Wire it behind an existing toggle switch plate controlling a shutter motor, keeping the original switch working alongside the new Z-Wave control.
Motor Stall Detection
Use the power metering to spot a shutter motor drawing current at the end of its travel, helping confirm the cover has actually reached its limit.
Specification
Connectivity
- CPU Z-Wave™ S800
- Z-Wave™ repeater
- Yes
- Z-Wave™ frequency bands
- 868,4 MHz; 865,2 MHz; 869,0 MHz; 921,4 MHz; 908,4 MHz; 916 MHz; 919,8 MHz; 922,5 MHz; 919,7-921,7-923,7 MHz; 868,1 MHz; 920,9 MHz
- Maximum radio frequency power transmitted in frequency band(s) < 25mW
- Operational range (depending on local construction) Up to
- 40m indoors (131 ft.)
Protection & Safety
- Overheating protection
- Yes
- Overload protection
- Yes
Physical & Build
- (H x W x L)
- 42 x 37 x 16 ±0.5 mm
Environmental
- Humidity
- 30% to 70% RH
Power & Electrical
- Power supply
- AC 110-240V 50/60Hz
- Max switching voltage
- AC 240V
- Power consumption < 0.3W
- Dry contacts
- No
Smart Features
- Power measurement
- Yes
Other
- Max switching current
- AC 10A per channel
- Ambient temperature
- -20°C to +40°C / -5°F to +105°F
