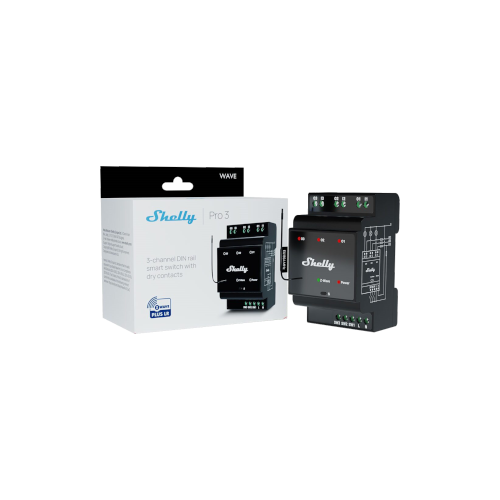

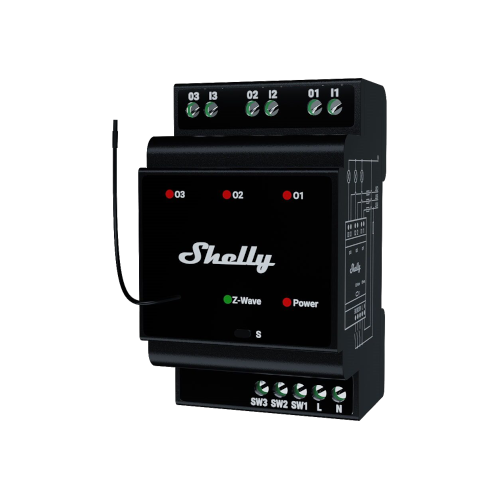

Shelly Wave Pro 3 LR
£127.29
A DIN rail professional relay with three independent dry contact channels rated 16A each (48A total), built for demanding residential and commercial installations. It adds Z-Wave Long Range for a stable connection up to 1km line of sight, alongside standard Z-Wave 800 series mesh networking and S2 authenticated security.
- 3 channels, 16A each, 48A total capacity
- Z-Wave Long Range connects up to 1km line of sight
- DIN rail mountable for breaker box installation
- S2 authentication with AES128 encryption for strong security
Buy the Shelly Wave Pro 3 LR online in the UK from ShellyUK — genuine Shelly stock with fast UK delivery.
The Shelly Wave Pro 3 LR is a professional-grade smart relay designed for powerful automation in both residential and commercial settings. With three independent channels of up to 16A each (48A total), it gives you reliable control over lighting, appliances, and a wide variety of electrical systems. Its potential-free (dry contact) outputs make it highly versatile, supporting both low and high voltages, while the DIN rail design ensures seamless integration into breaker boxes for new builds or professional installations. Now featuring Z-Wave Long Range (ZWLR), it maintains a strong, stable connection over distances of up to 1km line of sight, providing outstanding reliability across large properties.
Thanks to the latest Z-Wave 800 series, you’ll enjoy ultra-low power consumption (only 0.3W), advanced security with S2 authenticated encryption, and simple SmartStart setup — just scan and connect. The device is fully compatible with all certified Z-Wave devices and gateways, enabling you to create custom schedules, smart scenes, and automation scenarios tailored to your lifestyle or business operations. Whether you’re managing home appliances, office lighting, or complex commercial systems, the Shelly Wave Pro 3 LR makes energy optimisation effortless.
- 3 channels, 16 A each (48 A total)
- Z-Wave Long Range for up to 1 km connectivity (line of sight)
- Potential-free dry contacts for flexible voltage control
- DIN rail mountable, professional-grade design
- SmartStart setup and OTA firmware updates
- Advanced S2 security with AES128 encryption
From reducing energy waste in offices, to managing indoor climate in hotels, to automating appliances at home, the Shelly Wave Pro 3 LR is built for demanding environments where performance, range, and reliability matter most.
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
3 channels, 16A each, 48A total capacity
Z-Wave Long Range connects up to 1km line of sight
DIN rail mountable for breaker box installation
S2 authentication with AES128 encryption for strong security
Where you'd use it
Independent multi-circuit control in the consumer unit
Mount on DIN rail in a large residential or commercial breaker box to independently switch three separate lighting or appliance circuits, each rated up to 16A, from a single device.
Long-range outbuilding control
Use Z-Wave Long Range to reliably reach a detached garage, barn or outbuilding up to a kilometre away line of sight, without adding repeaters.
Multi-room hospitality management
Deploy across several rooms in a guesthouse or small hotel to manage lighting and appliance circuits centrally from one Z-Wave system.
Specification
Connectivity
- Z-Wave™ frequency bands
- 864.0 MHz (Mesh network) / 868.4 MHz (LR network)
- CPU Z-Wave™ S800
- Z-Wave™ repeater Yes (not on LR network)
- Maximum radio frequency power transmitted in frequency band(s) < 25mW
- Operational range (depending on local construction) Up to
- 40m indoors (Mesh network) Up to 80m indoors, 1km outdoors (LR network)
Protection & Safety
- Voltage protection / Cutoff
- No
- Current protection / Cutoff
- No
- Max power protection / Cutoff
- No
- Overheating protection
- Yes
Physical & Build
- (H x W x L)
- 96 x 53 x 59 ±0.5 mm 3.78 x 2.01 x 2.32 ±0.02 in
Environmental
- Humidity
- 30% to 70% RH
Power & Electrical
- Power supply
- 110-240V ±10% 50/60Hz AC
- Max switching voltage
- AC 240V
- Max switching voltage
- DC 30V
- Power consumption < 0.3W
Smart Features
- Power measurement
- No
Other
- Max switching current
- AC 16A per channel, 48A total
- Max switching current
- DC 16A per channel, 48A total
- Clean contact relay
- Yes
- Ambient temperature
- -20°C to 40°C / -5°F to 105°F
